Napco XRF Gold Testers

NAPCO ⚖ Precious Metal Testing Solutions

High-accuracy XRF analyzers for jewelry shops, pawnshops, and banks to verify gold, silver, and platinum purity instantly and non-destructively.

Key Benefits:

Rapid purity and karat identification in seconds
Non-destructive testing with no material loss
Detects fake,plated,or mixed metals accurately
User-friendly software for instant result display

Request More Information

NAP 8200E XRF Gold Tester

Accuracy Analysis accuracy of precious metals and jewelry is better than 99.99% Speed The whole measurement process takes only 30 seconds Stability NAP8200E offers long-life reproducibility of the analysis without the need to re-calibrate the system Function Tests all colors of gold from 1% to...

N1-10 XRF Gold Tester

The new N1-10 advanced gold XRF testing machine is the ultimate verification instrument for gold, silver, platinum, and palladium testing. This state-of-the-art tester has exceptional precision and is non-destructive. Equipped with a Hybrid detector, it enhances sensitivity and accuracy, especially for detecting trace elements and lower concentrations of metals. It is simple to use and provides accurate results in seconds digital karat value→ karat value digitally

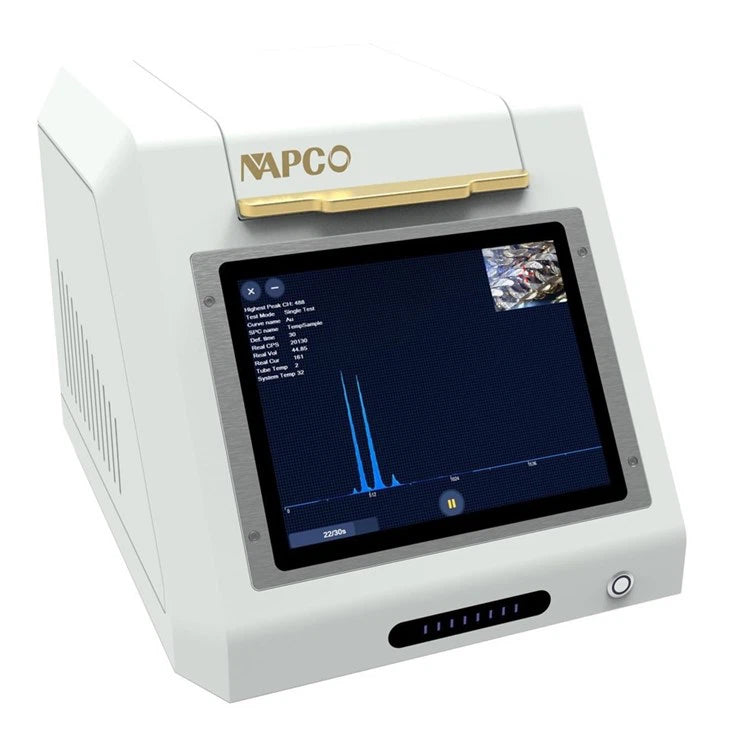

N1-25 XRF Gold Tester

The new N1-25 advanced gold XRF testing machine is the ultimate verification instrument for gold, silver, platinum, and palladium testing. This state-of-the-art tester has exceptional precision and is nondestructive. Equipped with a high-performance SiPin detector, it enhances sensitivity and accuracy, especially for detecting trace elements and lower concentrations of metals. It is simple to use and in seconds provides accurate results, showing both the digital karat value and percentages of all metals in the sample.

Quick Device Specifications

NAP 8200E XRF Gold Tester

Overall Dimensions (Machine);
Closed: 46 × 39 × 40 cm (18.11 × 15.35 × 15.75 in);
Open: 46 × 39 × 60 cm (18.11 × 15.35 × 23.62 in);
Sample Chamber Dimensions;
25 × 25 × 7.5 cm (9.84 × 9.84 × 2.95 in);
Machine Weight;
33 kg (72.75 lb);
Working Principle;
Energy Dispersive X-ray Fluorescence (EDXRF);
Detector;
Gas Proportional Detector;
Precision;
±10 ppm ~ 0.1%;
Analysis Range;
1% – 99.99%;
Detection Limit;
100 ppm (best substance effect);
Testable Elements;
Au, Ag, Cu, Pt, Pd, Ir, Cd, etc.;
Power Requirement;
220V, 50Hz;
PC / Laptop Interface;
Integrated PC with touch screen; Wireless LAN; USB interfaces; HD camera;
Main Structure;
High-strength metal frame with industrial plastic shell;
Operating Environment;
Temperature: 0 – 28°C;
Humidity: < 70%;
Operating System;
Windows 10;
Application Software;
Napco Precious Metal Analyzer;
Measurement Time;
30 seconds (Auto mode);
Camera;
Full-color camera;
Display;
12.1-inch full-color touch screen;
Connectivity;
2 × USB ports;
Standard Accessories;
AC power adapter; Silver calibrator; Wi-Fi adapter; Protective film stickers; Ring holder;
Warranty;
One-year standard warranty; Lifetime free software upgrades;
Package Size;
59 × 55.5 × 53 cm (23.23 × 21.85 × 20.87 in);
Package Weight;
48 kg (105.82 lb);

N1-10 XRF Gold Tester

Overall Dimensions (Machine):
46 × 39 × 40 cm (18.11 × 15.35 × 15.75 in)
Machine Weight:
30 kg (66 lb)
Working Principle:
Energy Dispersive X-ray Fluorescence (EDXRF)
Detector:
Hybrid Detector
Resolution:
140 eV FWHM
Accuracy:
0.03%
Analysis Range:
100 ppm (best substance effect)
Testable Elements:
Au, Ag, Pt, Pd, Rh, Cu, Zn, Ni, Cd, In
Power Requirements:
AC 220V ±10V or AC 110V ±10V; 50 / 60 Hz
PC / Laptop Interface:
Integrated PC with touch screen; Wireless LAN; USB interfaces; HD camera
Multichannel Analyzer:
Digital multichannel
Operating Environment:
Temperature: 5 – 38°C
Humidity: ≤ 70%
Operating System:
Windows 10
Application Software:
Napco XRF Precious Metal Analyzer
Measurement Time:
30 – 60 seconds
Camera:
Full-color camera
Display:
12.1-inch full-color touch screen
Connectivity:
2 × USB ports
Standard Accessories:
AC power adapter; Silver calibrator; Wi-Fi adapter; Protective film stickers; Ring holder
Warranty:
One-year standard warranty; Lifetime free software upgrades
Package Size:
59 × 55.5 × 53 cm (23.23 × 21.85 × 20.87 in)
Package Weight:
48 kg (105.82 lb)

N1-25 XRF Gold Tester

Overall Dimensions (Machine):
46 × 39 × 40 cm (18.11 × 15.35 × 15.75 in)
Machine Weight:
30 kg (66 lb)
Working Principle:
Energy Dispersive X-ray Fluorescence (EDXRF)
Detector:
High-performance Si-PIN detector
Resolution:
140 eV FWHM
Accuracy:
0.03%
Testable Elements:
Au, Ag, Pt, Pd, Rh, Ir, Ru, Cu, Zn, Ni, Cr, Co, Fe, Sn, Sb, Cd, Pb, Mn, Ga, In, Bi, Zr, Ge, W
Power Requirements:
AC 220V ±10V or AC 110V ±10V; 50 / 60 Hz
PC / Laptop Interface:
Integrated PC with touch screen; Wireless LAN; USB interfaces; HD camera
Multichannel Analyzer:
Digital multichannel
Operating Environment:
Temperature: 5 – 38°C
Humidity: ≤ 70%
Operating System:
Windows 10
Application Software:
Napco XRF Precious Metal Analyzer
Measurement Time:
30 – 60 seconds
Camera:
Full-color camera
Software Connectivity:
2 × USB ports
Standard Accessories:
AC power adapter; Silver calibrator; Wi-Fi adapter; Protective film stickers; Ring holder
Warranty:
One-year standard warranty; Lifetime free software upgrades
